วาล์วควบคุมระบบน้ำ Bermad
รุ่น Surge Anticipating Valve ผลิตภัณฑ์ที่ได้รับการยอมรับจากทั่วโลก
Surge Anticipating Valve Model 735-M
Hydraulically operated off-line surge anticipating valve that immediately opens in response to the pressure drop associated with abrupt pump stoppage. The preopened valve dissipates the returning high pressure wave, eliminating the surge. The valve smoothly closes drip tight as quickly as the relief feature allows, thereby preventing closing surge. The valve also relieves excessive system pressure. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards.
เยี่ยมชมเว็บไซต์ได้ที่ www.bermad.com
Surge Anticipating Valve Model 835-M
Off-line surge anticipating valve that immediately opens in response to the pressure drop associated with abrupt pump stoppage. The pre-opened valve dissipates the returning high pressure wave, eliminating the surge. The valve smoothly closes drip tight as quickly as the relief feature allows, thereby preventing closing surge. The valve also relieves excessive system pressure. BERMAD 800 series valves are hydraulically operated, piston actuated globe valves designed for high pressure operation and available in either standard oblique (Y) or angle pattern design. Their full bore hydrodynamic body provides an unobstructed flow path while their seat assembly and double-chamber unitized actuator can be disassembled without removing the valve body from the pipeline.
เยี่ยมชมเว็บไซต์ได้ที่ www.bermad.com
หากต้องการสินค้าด่วน หรือต้องการขอราคาพร้อมส่วนลดพิเศษ ติดต่อได้ที่
Line : @uhmgroup โทร : 02-251-8300

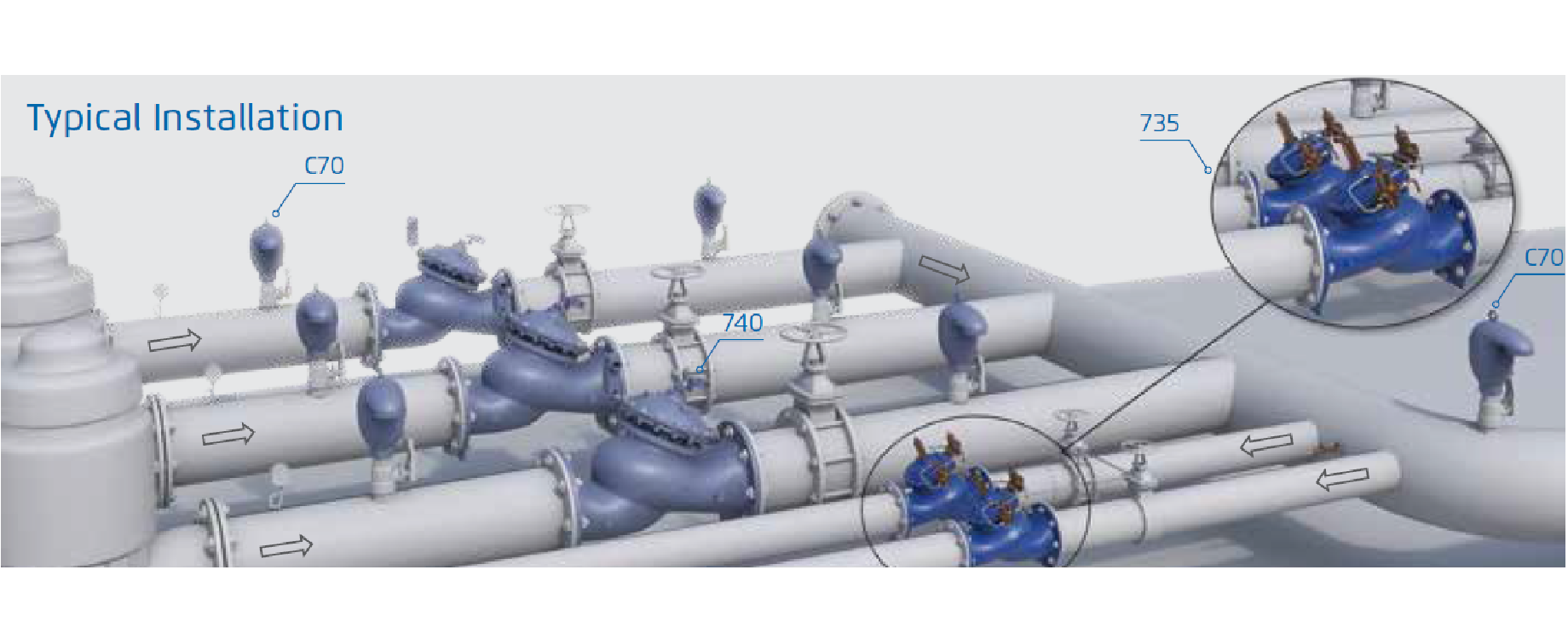

Typical Installation
Typical Installation for Surge Anticipating Valve Model 735-M

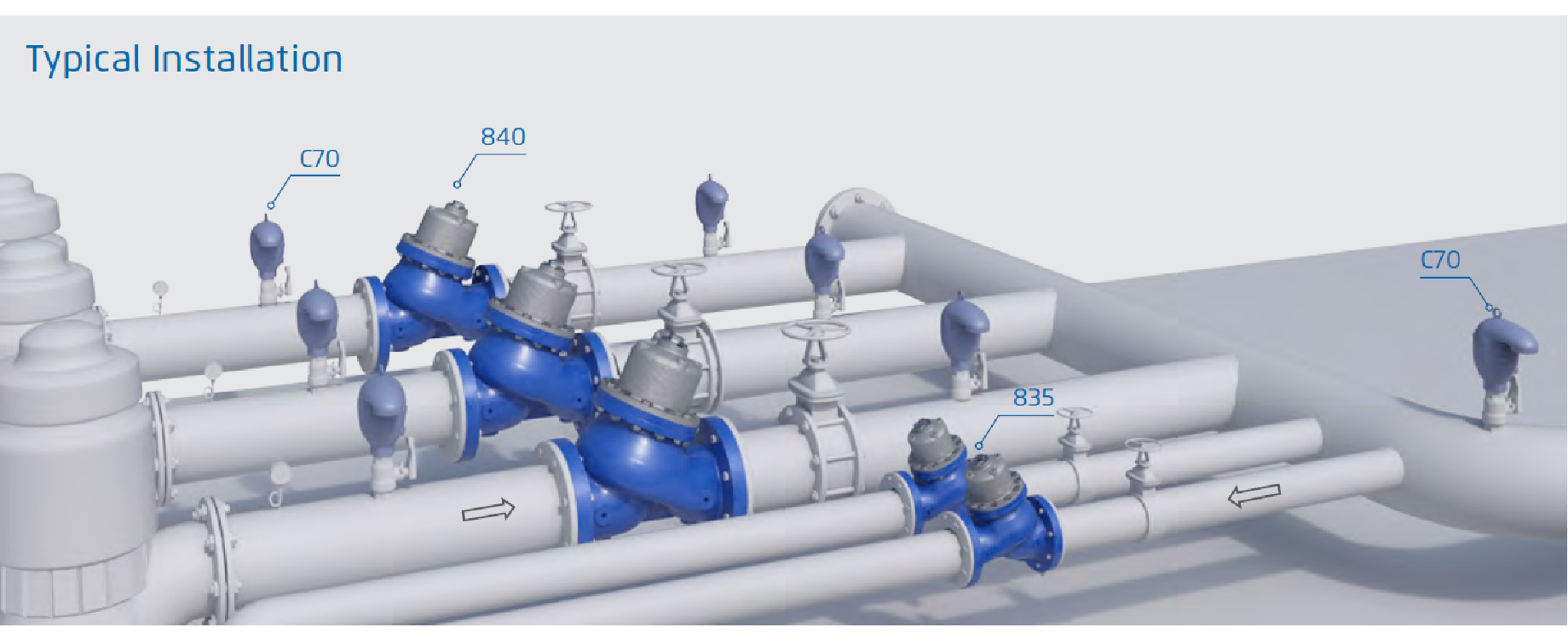

Typical Installation
Typical Installation for Surge Anticipating Valve Model 835-M
ดาวน์โหลดเอกสาร
แคตตาล็อก Surge Anticipating Valve Model 735-M
แคตตาล็อก Surge Anticipating Valve Model 835-M
