Bermad Water System Control Valve
Model Pressure Reducing Valve
Pressure Reducing Valve
Hydraulically operated, pressure reducing control valve that reduces higher upstream pressure to lower constant downstream pressure, regardless of fluctuating demand or varying upstream pressure. BERMAD 700 series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integal unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an independent check feature code "2S". The 700 valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards.
Visit the website at www.bermad.com
Pressure Reducing Valve
Hydraulically operated, pressure reducing control valve that reduces higher upstream pressure to lower constant downstream pressure, regardless of fluctuating demand or varying upstream pressure. The valve is equipped with a full opening eclectic override device. It reduces pressure loss across the valve to a minimum, in the event of a pressure drop below a minimum value. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards.
Visit the website at www.bermad.com
Proportional Pressure Reducing Valve
Hydraulically operated, diaphragm actuated, pressure reducing control valve that reduces higher upstream pressure to lower downstream pressure at a fixed ratio. The fixed pressure reducing ratio is determined with regard to valve size and plug type. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards.
Visit the website at www.bermad.com
Inquiries for an expedited product or a price with a special discount, contact us at
Line : @uhmgroup Contact Number : 02-251-8300
Typical Installation
Typical Installation for Pressure Reducing Valve Model 720
Typical Installation
Typical Installation for Pressure Reducing Valve with Multi Level Setting, Electrically Controlled Model 720-59

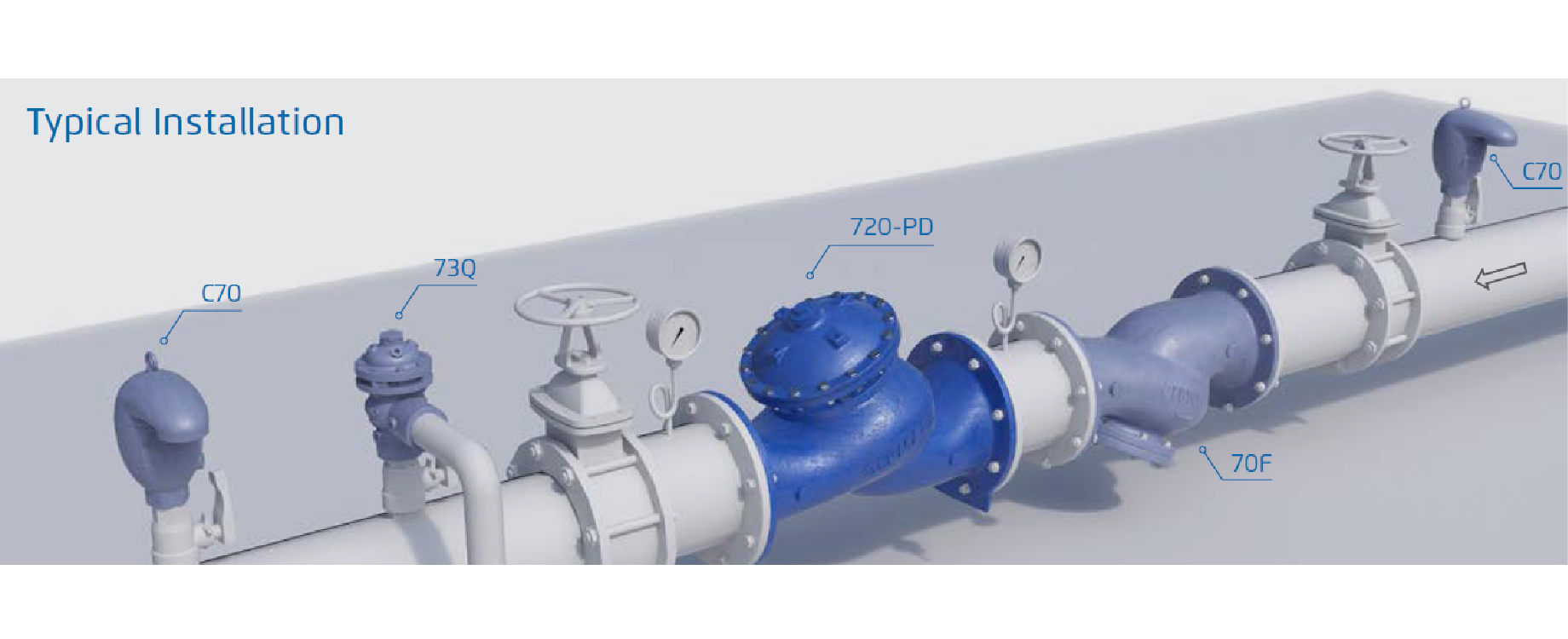

Typical Installation
Typical Installation for Proportional Pressure Reducing Valve Model 720-PD
